ePC-DUO

Embedded Computer with Two XMC IO Sites & Integrated Timing Support

Overview

The ePC-Duo is a user-customizable, turnkey embedded instrument that includes a full Windows/Linux PC and supports a wide assortment of ultimate-performance XMC modules. With its modular IO, scalable performance, and easy to use PC architecture, the ePC-Duo reduces time-to- market while providing the performance you need.

Key Features

Dual FMC I/O modules

Dual XMC I/O sites

Compact stand alone design

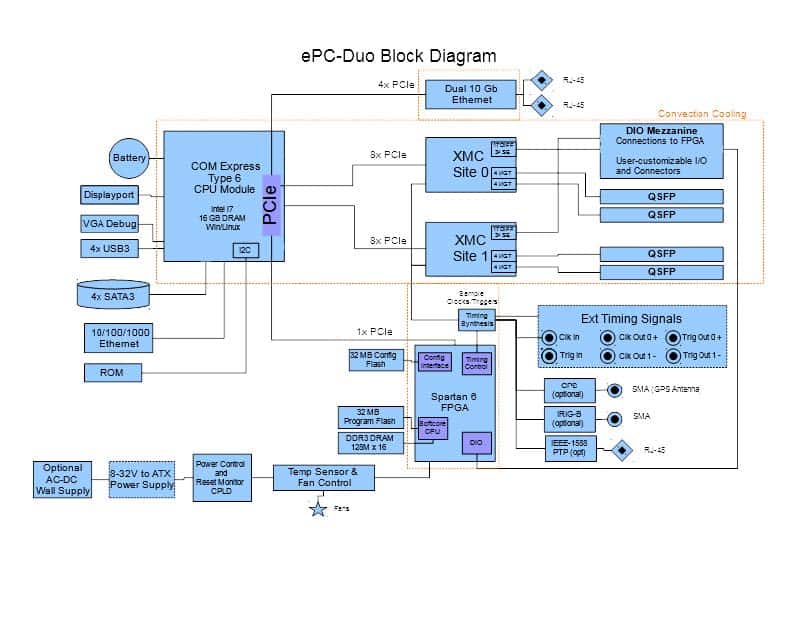

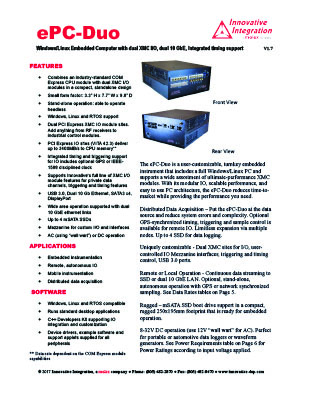

Block Diagram, Data Sheet and Product Details

Want More Details?

Request the Hardware Reference Guide (HRG)

The HRG gives you much more detail about the card such as block diagrams, tables and descriptions.

Features

  • Combines an industry-standard COM Express CPU module with dual FMC IO modules in a compact, stand alone design
  • Small form factor: 3.3” H x 7.7” W x 9.8” D
  • Stand-alone operation: able to operate diskless and headless
  • Windows, Linux and RTOS support
  • Dual PCI Express XMC IO module sites. Add anything from RF receivers to industrial control modules.
  • PCI Express IO sites (VITA 42.3) deliver >3400MB/s to CPU memory**
  • Integrated timing and triggering support for IO includes optional GPS, IEEE-1588 or IRIG -disciplined clock
  • Supports Innovative X3, X5, and X6 I/O module features for private data channels, triggering and timing features
  • USB3, 10 Gb Ethernet, SATA3 x4, DisplayPort, HD audio
  • System expansion supported with dual 10 GbE ethernet links
  • Up to 4 SSD (2.5 in)
  • IEEE 1588 network timing, GPS option
  • FPGA for custom I/O and interfaces
  • AC or DC operation
** Data rate dependent on the COM Express module capabilities

Applications

  • Embedded Instrumentation
  • Remote, Autonomous IO
  • Mobile Instrumentation
  • Distributed Data Acquisition

Distributed Data Acquisition – Put the ePC-Duo at the data source and reduce system errors and complexity. Optional GPS-synchronized timing, triggering and sample control is available for remote IO. Limitless expansion via multiple nodes. Up to 4 HDD for data logging.

Uniquely customizable – Dual XMC sites for I/O, user- programmable FPGA for IO interfaces, triggering and timing control, USB ports.

Remote or Local Operation – Continuous data streaming up to 2000MB/s (quad local SSDs or dual 10 GbE LAN). Optional, stand-alone, autonomous operation with GPS or network -synchronized sampling.

Rugged – SSD boot drive support in a compact, rugged 250x195mm footprint that is ready for embedded operation.

8-36V DC-Only Operation – Perfect for portable or automotive data loggers or waveform generators.
