XU-AWG

Two 16-bit RF DACs Up to 12 GSPS and UltraScale FPGA

Need a Price Quote?

Overview

The XU-AWG is an XMC card with two 8-lane high speed serial links: one on XMC connector P15 and one on P16. These links can support several protocols (up to 8-lane PCIe, Aurora or user defined).

The XU-AWG XMC card features two AC-coupled single-ended DAC outputs with programmable DC bias. The Analog Devices AD9162 high-speed/high performance DACs employ synchronization support, interpolation, fixed latency and unique output circuits providing improved frequency synthesis in the 2nd and 3rd Nyquist zones.

Key Features

AMD Kintex UltraScale

2x DAC channels
16-bit, 12 GSPS

PMC/XMC Module

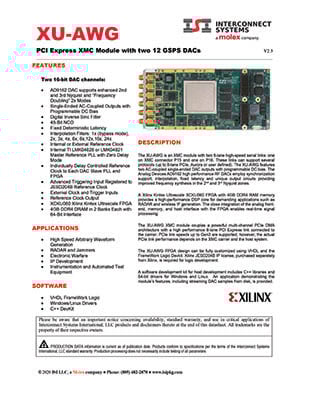

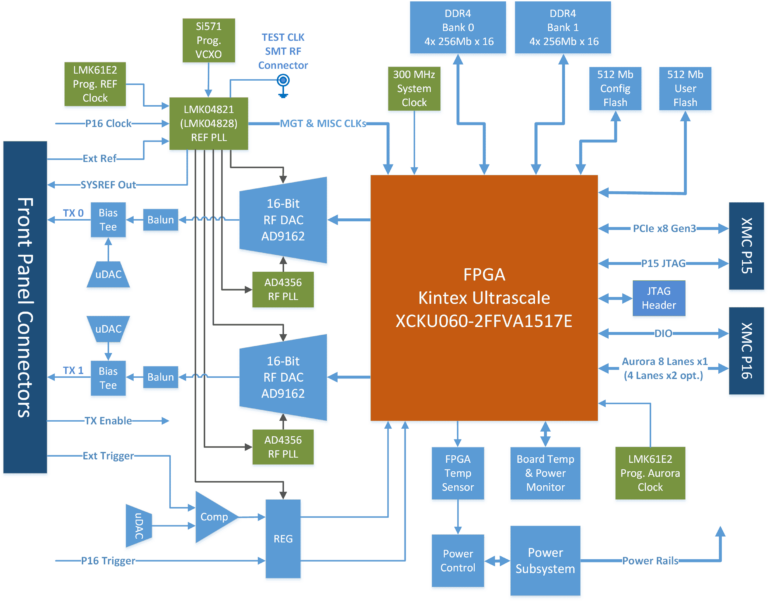

Block Diagram, Data Sheet and Product Details

Want More Details?

Request the Hardware Reference Guide (HRG)

The HRG gives you much more detail about the card such as block diagrams, tables and descriptions.

Features

  • D9162 DAC supports enhanced 2nd and 3rd Nyquist and “Frequency Doubling” 2x Modes
  • Single-Ended AC-Coupled Outputs with Programmable DC Bias
  • Digital Inverse Sinc Filter
  • 48-Bit NCO
  • Fixed Deterministic Latency
  • Interpolation Filters: 1x (bypass mode), 2x, 3x, 4x, 6x, 8x,12x,16x, 24x
  • Internal or External Reference Clock
  • Internal TI LMK04828 or LMK04821 Master Reference PLL with Zero Delay Mode
  • Individually Delay Controlled Reference Clock to Each DAC Slave PLL and FPGA
  • Advanced Triggering Input Registered to JESD204B Reference Clock
  • External Clock and Trigger Inputs
  • Reference Clock Output
  • XCKU060 Xilinx Kintex Ultrascale FPGA
  • 4GB DDR4 DRAM in 2 Banks Each with 64- Bit Interface

Applications

  • High Speed Arbitrary Waveform Generation
  • RADAR Simulation and Jammers
  • Electronic Warfare
  • IP Development
  • Instrumentation and Automated Test Equipment

Software

  • VHDL FrameWork Logic
  • Windows/Linux Drivers
  • C++ DevKit

A Xilinx Kintex Ultrascale XCKU060 FPGA with 4GB DDR4 RAM memory provides a high-performance DSP core for demanding applications such as RADAR and wireless IF generation. The close integration of the analog front end, memory, and host interface with the FPGA enables real-time signal processing.

The XU-AWG XMC module couples a powerful multi-channel PCIe DMA architecture with a high performance 8 lane PCI Express link connected to the carrier. PCIe link speeds up to Gen3 are supported; however, the actual PCIe link performance depends on the XMC carrier and the host system.

The XU-AWG FPGA design can be fully customized using VHDL and the FrameWork Logic Devkit. Xilinx JESD204B IP license, purchased separately from Xilinx, is required for logic development.

A software development kit for host development includes C++ libraries and 64-bit drivers for Windows and Linux. An application demonstrating the module’s features, including streaming DAC samples from disk, is provided.
