XA-RX

Eight 125 MSPS 16-Bit ADC & Artix-7 FPGA

Overview

The XA-RX XMC card features eight 16-bit, 125 MSPS A/D channels designed for high speed stimulus-response, ultrasound, and RADAR.

Key Features

AMD Artix 7

8x ADC channels
16-bit, 125 MSPS

PCI Express 2.0 XMC Module

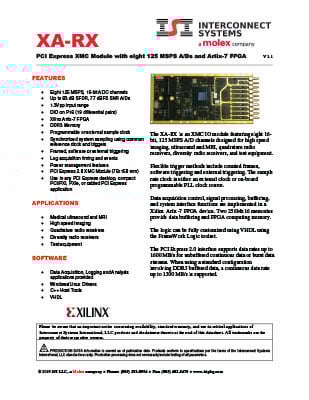

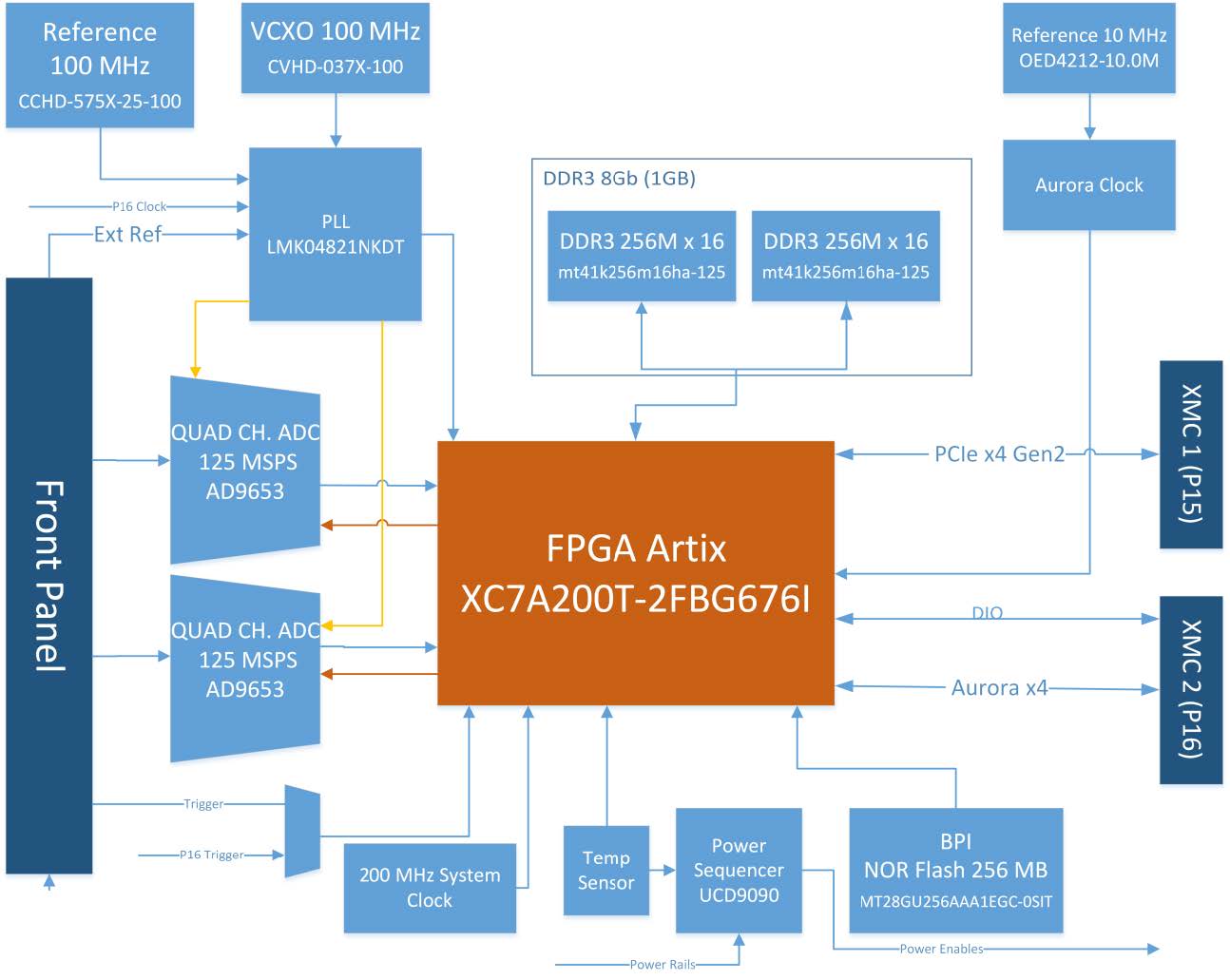

Block Diagram, Data Sheet and Product Details

Want More Details?

Request the Hardware Reference Guide (HRG)

The HRG gives you much more detail about the card such as block diagrams, tables and descriptions.

Features

  • Eight 125 MSPS, 16-bit ADC channels
  • 89 dB SFDR, 72 dBFS SNR A/Ds
  • 3Vpp input range
  • DIO on P16 (19 differential pairs)
  • Xilinx Artix-7 FPGA
  • DDR3 Memory
  • Programmable or external sample clock
  • Synchronized system sampling using common reference clock and triggers
  • Framed, software or external triggering
  • Log acquisition timing and events
  • Power management features
  • PCI Express 2.0 XMC Module (75×150 mm)
  • Use in any PCI Express desktop, compact PCI/PXI, PXIe, or cabled PCI Express application

Applications

  • Stimulus-response measurements
  • High speed servo controls
  • Arbitrary Waveform Generation

Flexible trigger methods include counted frames, software triggering and external triggering. The sample rate clock is either an external clock or on-board programmable PLL clock source.

Data acquisition control, signal processing, buffering, and system interface functions are implemented in a Xilinx Artix-7 FPGA device. Two 256Mx16 memories provide data buffering and FPGA computing memory.

The logic can be fully customized using VHDL and MATLAB using the FrameWork Logic toolset. The MATLAB BSP supports real-time hardware-in-the-loop development using the graphical, block diagram Simulink environment with Xilinx System Generator.

The PCI Express 2.0 interface supports continuous data rates up to 1600 MB/ s between the module and the host. A flexible data packet system implemented over the PCIe interface provides both high data rates to the host that is readily expandable for custom applications.
