VPX-XMC Adapter

Rugged Conduction or Air Cooled XMC Adapter with IPMI Support

Overview

The VPX-XMC module adapter allows a single width XMC module to be used in a 3U OpenVPX slot.

Key Features

Adapt XMC to 3U OpenVPX VITA 65

Configurable mapping for VPX to XMC communications ports

Air or conduction cooled

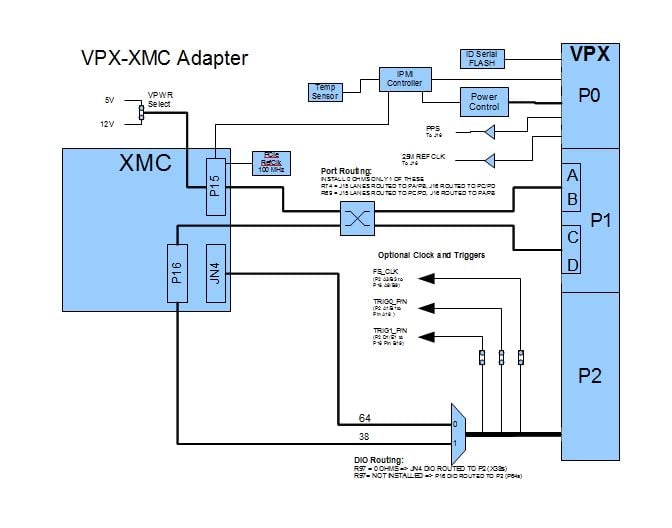

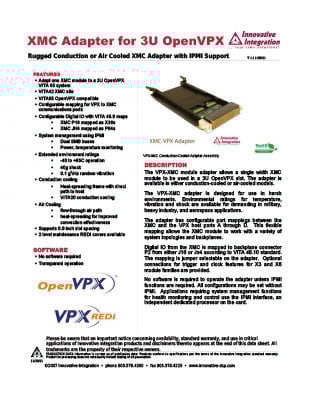

Block Diagram, Data Sheet and Product Details

Want More Details?

Request the Hardware Reference Guide (HRG)

The HRG gives you much more detail about the card such as block diagrams, tables and descriptions.

Features

  • Adapt one XMC module to a 3U OpenVPX VITA 65 system
  • VITA42 XMC site
  • VITA65 OpenVPX compatible
  • Configurable mapping for VPX to XMC communications ports
  • Configurable Digital IO with VITA 46.9 maps
    XMC P16 mapped as X38s
    • XMC JN4 mapped as P64s
  • System management using IPMI
    Dual SMB buses
    • Power, temperature monitoring
  • Extended environment ratings
    -40 to +85C operation
    • 40g shock
    • 0.1 g2/Hz random vibration
  • Conduction cooling
    Heat-spreading frame with direct
    path to host
    • VITA20 conduction cooling
  • Air Cooling
    flow-through air path
    • heat-spreading for improved
    convection effectiveness
  • Supports 0.8 inch slot spacing
  • 2 level maintenance REDI covers available

Available in either conduction-cooled or air-cooled models.

The VPX-XMC adapter is designed for use in harsh environments. Environmental ratings for temperature, vibration and shock are available for demanding in military, heavy industry, and aerospace applications.

The adapter has configurable port mappings between the XMC and the VPX host ports A through D. This flexible mapping allows the XMC module to work with a variety of system topologies and backplanes.

Digital IO from the XMC is mapped to backplane connector P2 from either J16 or Jn4 according to VITA 48.10 standard. The mapping is jumper selectable on the adapter. Optional connections for trigger and clock features for X3 and X6 module families are provided.

No software is required to operate the adapter unless IPMI functions are required. All configurations may be set without IPMI. Applications requiring system management functions for health monitoring and control use the IPMI interface, an independent dedicated processor on the card.
