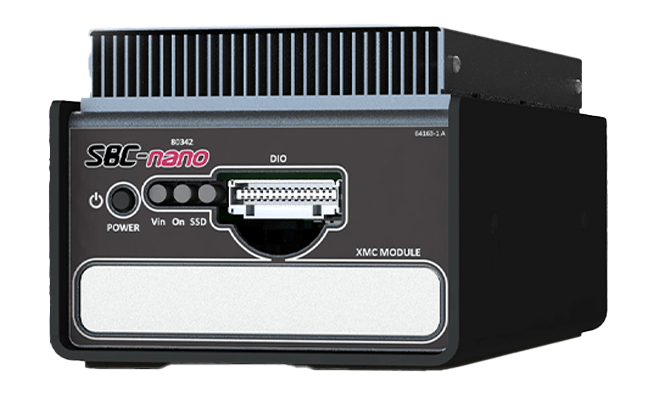

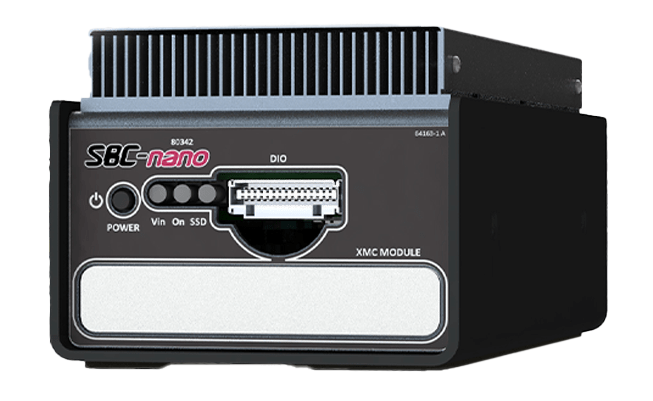

SBC-Nano

Windows/Linux Embedded Single Board Computer with XMC IO Site and 1 GbE Link

Overview

The SBC-Nano is a customizable, turnkey embedded instrument that includes a full Windows/Linux PC and supports a wide assortment of ultimate-performance XMC modules. With it’s modular IO, scalable performance and easy to use PC architecture, the SBC-Nano reduces time-to-market while providing the performance you need.

Key Features

Configurable IO uses standard XMC IO modules

Intel-based CPU core on a Type 10 mini size COM Express module

Rugged stand alone design

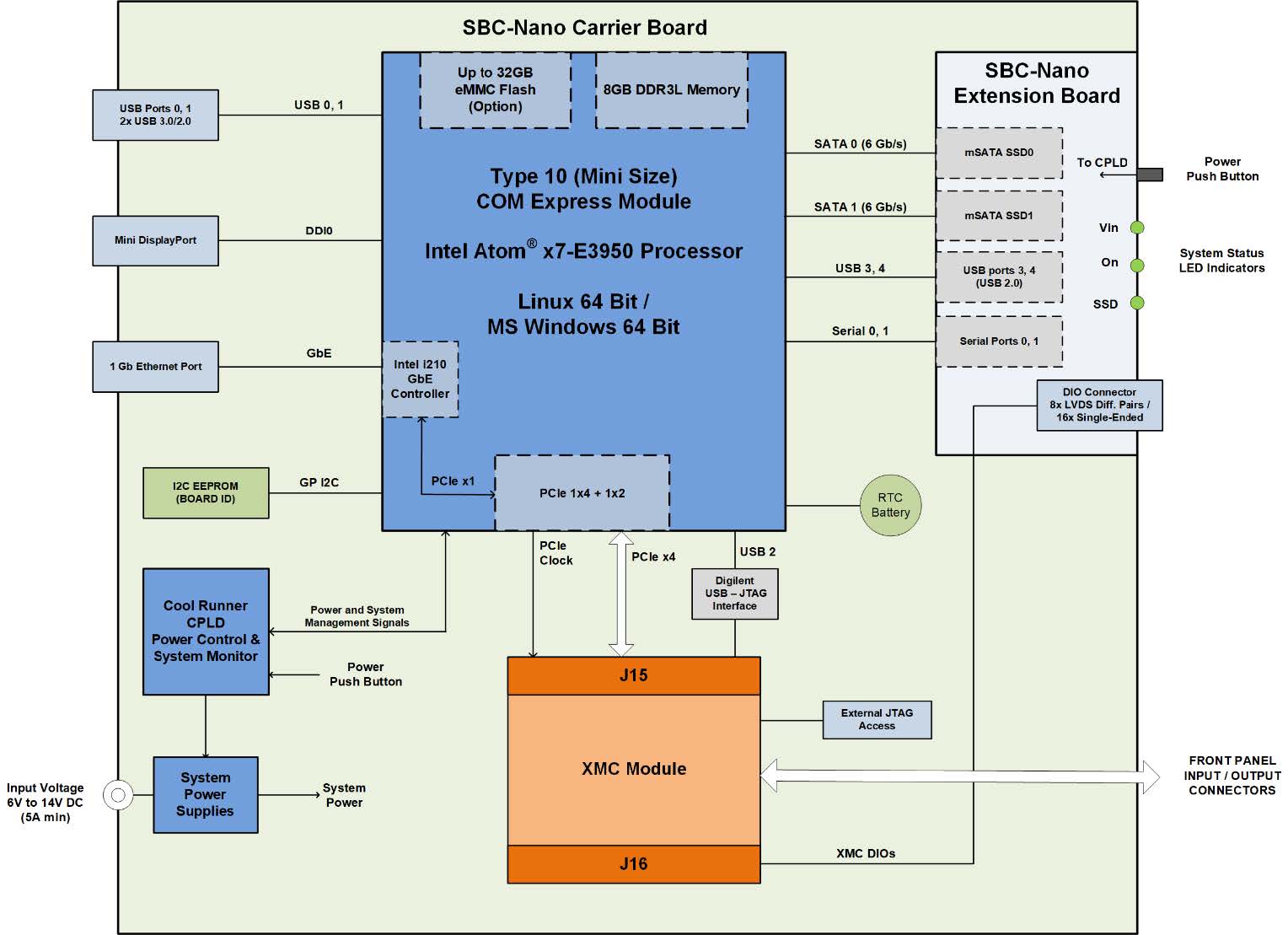

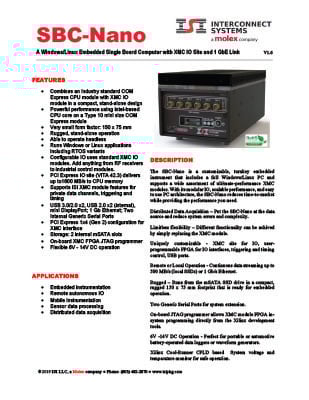

Block Diagram, Data Sheet and Product Details

Want More Details?

Request the Hardware Reference Guide (HRG)

The HRG gives you much more detail about the card such as block diagrams, tables and descriptions.

Features

  • Combines an industry-standard COM Express CPU module with a single XMC I/O module in a compact, stand alone design
  • Powerful performance using Intel-based CPU core on a Type 10 mini size COM Express module
  • Very small form factor: 150 x 75 mm
  • Rugged, stand-alone operation
  • Able to operate headless
  • Runs Windows or Linux applications including RTOS variants
  • Configurable IO uses standard XMC IO modules. Add anything from RF receivers to industrial control modules
  • PCI Express IO site (VITA 42.3) delivers up to 1600MB/s to CPU memory
  • Supports ISI XMC module features for private data channels, triggering and timing
  • USB 3.0/2.0 x2, USB 2.0 x2 (internal). mini DisplayPort; 1Gb Ethernet; Two Internal Generic Serial Ports
  • PCI Epress 1×4 (Gen 2) configuration for XMC interface
  • Storage: 2 internal mSATA slots
  • On-board XMC FPGA JTAG programmer
  • Flexible 6V – 14V DC operation

Applications

  • Embedded Instrumentation
  • Remote Autonomous IO
  • Mobile Instrumentation
  • Sensor Data Processing
  • Distributed Data Acquisition

Distributed Data Acquisition – Put the SBC-Nano at the data source and reduce system errors and complexity.

Limitless Flexibility – Different functionality can be achieved by simply replacing the XMC module.

Uniquely Customizable – XMC site for IO, user-programmable FPGA for IO interfaces, triggering and timing control, USB ports.

Remote or Local Operation – Continuous data streaming up to 500 MB/s (local SSDs) or 1 Gb/s Ethernet.

Rugged – Runs from the mSATA SSD drive in a compact, rugged 150 x 75 mm footprint that is ready for embedded operation.

Two Generic Serial Ports for system extension

On-board JTAG programmer allows XMC module FPGA in-system programming directly from the Xilinx development tools.

6V – 14V DC Operation – Perfect for portable or automotive battery-operated data loggers or waveform generators.

Xilinx Cool-Runner CPLD based System voltage and temperature monitor for safe operation.
