PCIe XMC x8 Adapter x6

PCI Express XMC to Desktop Adapter with P16 High Speed Communications Ports and JN4 Digital IO

Need a Price Quote?

Overview

The PCI Express to XMC module adapter allows a single width XMC module to be used in a PCI Express slot. The XMC module is VITA 42.3 compatible and supports up to eight PCI Express lanes.

Key Features

Adapt XMC VITA 42.3 to PCIe

8x high-speed expansion ports

Supports up to 8 PCIe lanes

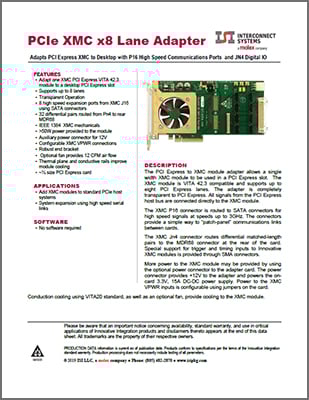

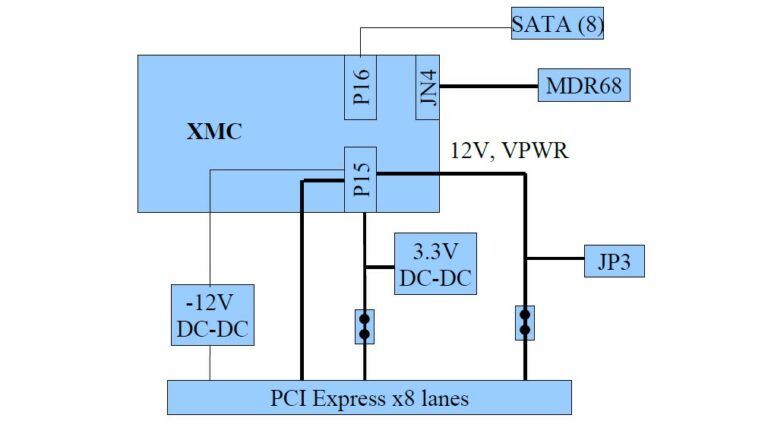

Block Diagram, Data Sheet and Product Details

Want More Details?

Request the Hardware Reference Guide (HRG)

The HRG gives you much more detail about the card such as block diagrams, tables and descriptions.

Features

  • Adapt one XMC PCI Express VITA 42.3 module to a desktop PCI Express slot
  • Supports up to 8 lanes
  • Transparent Operation
  • 8 high speed expansion ports from XMC J16 using SATA connectors
  • 32 differential pairs routed from Pn4 to rear MDR68
  • IEEE 1384 XMC mechanicals
  • >50W power provided to the module
  • Auxiliary power connector for 12V
  • Configurable XMC VPWR connections
  • Robust end bracket
  • Optional fan provides 12 CFM air flow
  • Thermal plane and conductive rails improve module cooling
  • ~½ size PCI Express card

Applications

  • Add XMC modules to standard PCIe host systems
  • System expansion using high speed serial links

The adapter is completely transparent to PCI Express. All signals from the PCI Express host bus are connected directly to the XMC module.

The XMC P16 connector is routed to SATA connectors for high speed signals at speeds up to 3GHz. The connectors provide a simple way to “patch-panel” communications links between cards.

The XMC Jn4 connector routes differential matched-length pairs to the MDR68 connector at the rear of the card. Special support for trigger and timing inputs to Innovative XMC modules is provided through SMA connectors.

More power to the XMC module may be provided by using the optional power connector to the adapter card. The power connector provides +12V to the adapter and powers the oncard 3.3V, 15A DC-DC power supply. Power to the XMC VPWR inputs is configurable using jumpers on the card.

Conduction cooling using VITA20 standard, as well as an optional fan, provide cooling to the XMC module.

The XMC module mounts securely to the adapter using standoffs and with the end bracket. The bracket mates tostandard PMC end brackets and supports an EMI gasket.
