mini-K7

Mini Embedded Computer with Kintex-7 FPGA & FMC I/O Site & Integrated Timing Support

Overview

The mini-K7 is a user-customizable, turnkey embedded instrument that includes a full Windows/Linux PC and supports a wide assortment of ultimate-performance FMC modules. With its modular I/O, scalable performance, and easy to use PC architecture, the mini-K7 reduces time-to- market while providing the performance you need.

Key Features

Dual FMC I/O modules

Dual XMC I/O sites

Compact stand alone design

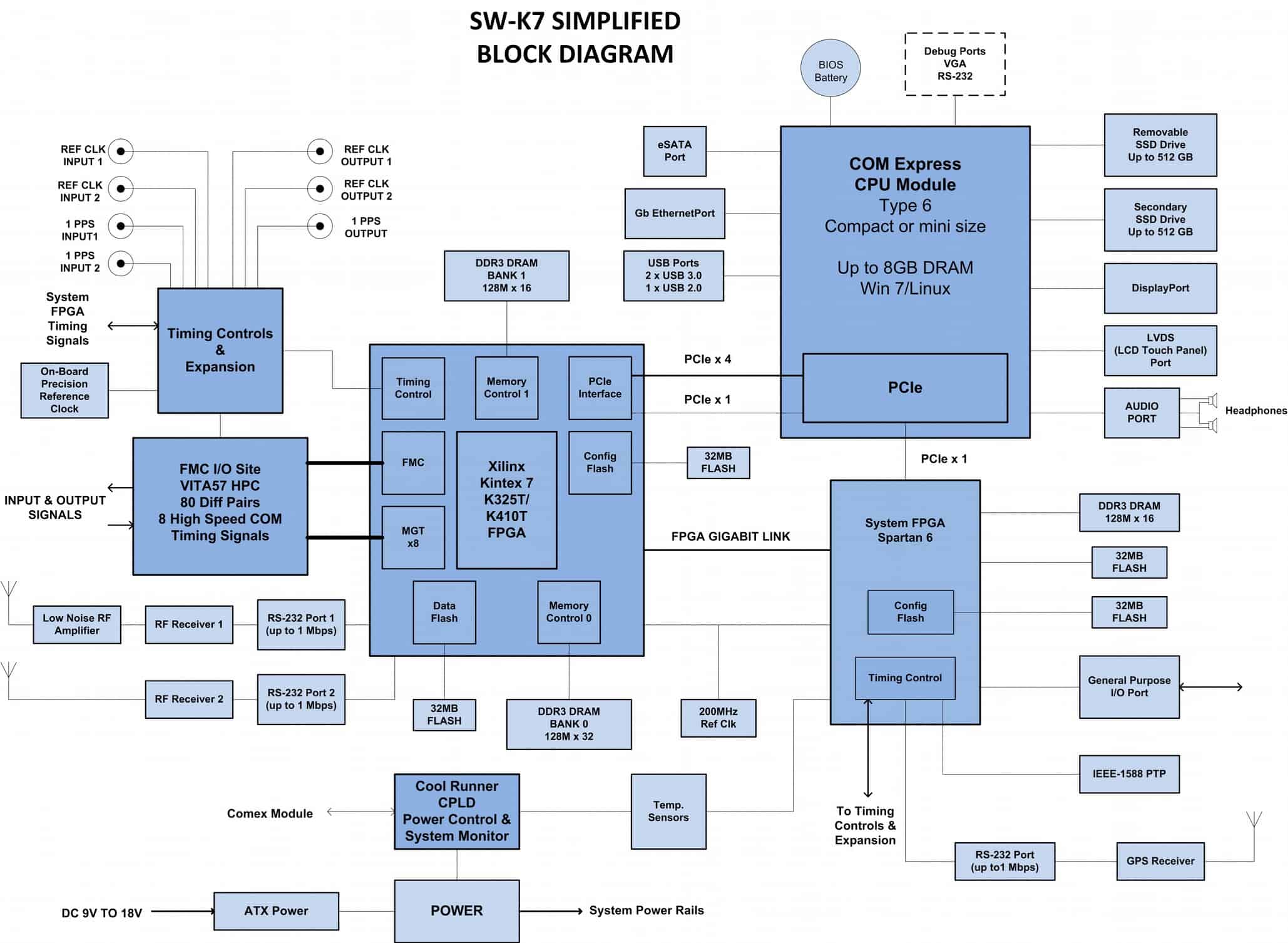

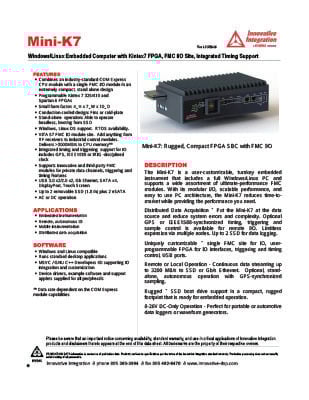

Block Diagram, Data Sheet and Product Details

Want More Details?

Request the Hardware Reference Guide (HRG)

The HRG gives you much more detail about the card such as block diagrams, tables and descriptions.

Features

  • Combines an industry-standard COM Express CPU module with a single FMC I/O module in an extremely compact, stand alone design
  • Programmable Kintex 7 325/410 and Spartan 6 FPGAs
  • Small form factor: 4” H x 7” W x 10” D
  • Conduction cooled design: Fins or cold-plate
  • Stand-alone operation: Able to operate headless, booting from SSD
  • Windows, Linux OS support. RTOS availability
  • Single VITA 57 FMC IO module site. Add anything from RF receivers to industrial control modules
  • Integrated timing and triggering support for IO includes GPS or IEEE1588 -disciplined clock
  • Supports Innovative and third-party FMC modules for private data channels, triggering and timing features
  • 4 USB ports, 1Gb Ethernet, SATA (up to 4), DisplayPort Touch Screen
  • Up to 2 SSD (1.8 in)
  • AC or DC operation

Applications

  • Embedded Instrumentation
  • Remote, Autonomous IO
  • Mobile Instrumentation
  • Distributed Data Acquisition

Distributed Data Acquisition – Put the mini-K7 at the data source and reduce system errors and complexity. Optional GPS or IEEE1588-synchronized timing, triggering and sample control is available for remote I/O. Limitless expansion via multiple nodes. Up to 4 SSD for data logging.

Uniquely customizable – dual FMC sites for IO, user- programmable FPGA for IO interfaces, triggering and timing control, USB ports.

Remote or Local Operation – Continuous data streaming up to 3200 MB/s to SSD or Gb/s Ethernet. Optional, stand- alone, autonomous operation with GPS-synchronized sampling.

Rugged – SSD boot drive support in a compact, rugged footprint that is ready for embedded operation.

9-18V DC-Only Operation – Perfect for portable or automotive data loggers or waveform generators.
