ePC-K7

Embedded Computer with Kintex-7 FPGA & Two FMC IO Sites & Integrated Timing Support

Overview

The ePC-K7 is a user-customizable, turnkey embedded instrument that includes a full Windows/Linux PC and supports a wide assortment of ultimate-performance FMC modules. With its modular IO, scalable performance, and easy to use PC architecture, the ePC-K7 reduces time-to- market while providing the performance you need.

Key Features

Dual FMC I/O modules

Dual XMC I/O sites

Compact stand alone design

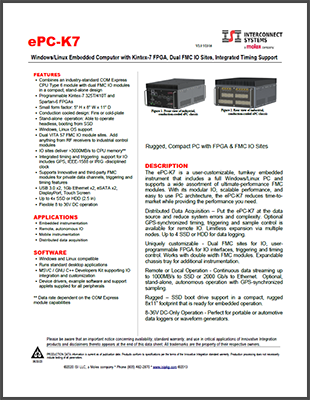

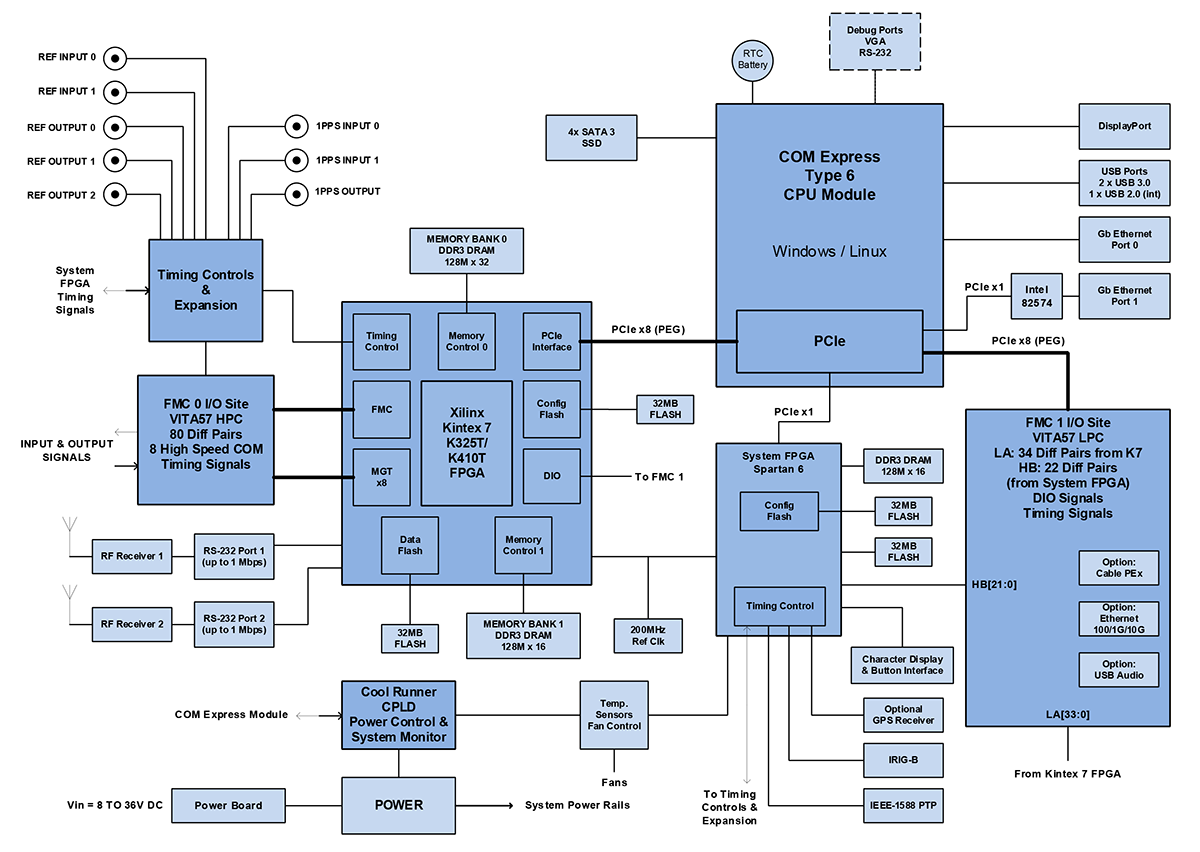

Block Diagram, Data Sheet and Product Details

Want More Details?

Request the Hardware Reference Guide (HRG)

The HRG gives you much more detail about the card such as block diagrams, tables and descriptions.

Features

  • Combines an industry-standard COM Express CPU module with dual FMC IO modules in a compact, stand alone design
  • Programmable Kintex 7 325/410 and Spartan 6 FPGAs
  • Small form factor: 5” H x 8” W x 11” D
  • Conduction cooled design: Fins or cold-plate
  • Stand-alone operation: Able to operate headless, booting from SSD
  • Windows, Linux OS support
  • Dual VITA 57 FMC IO module sites. Add anything from RF receivers to industrial control modules.
  • IO sites (VITA 42.3) deliver >3000MB/s to CPU memory**
  • Integrated timing and triggering support for IO includes GPS, IEEE1588 or IRIG -disciplined clock
  • Supports Innovative and third-party FMC modules for private data channels, triggering and timing features
  • 0 x6, Gb Ehernet x2, SATA x4, DisplayPort, Touch Screen
  • Up to 4 SSD or HDD (2.5 in) AC or DC operation

Applications

  • Embedded Instrumentation
  • Remote, Autonomous IO
  • Mobile Instrumentation
  • Distributed Data Acquisition

Distributed Data Acquisition – Put the ePC-K7 at the data source and reduce system errors and complexity. Optional GPS-synchronized timing, triggering and sample control is available for remote IO. Limitless expansion via multiple nodes. Up to 4 HDD for data logging.

Uniquely customizable – Dual FMC IO module sites – add anything from RF receivers to industrial control modules. User-programmable FPGA for IO interfaces, triggering and timing control, USB ports.

Remote or Local Operation – Continuous data streaming up to 1000MB/s or 2 x Gb/s Ethernet. Optional, stand-alone, autonomous operation with GPS-synchronized sampling.

Rugged – SSD boot drive support in a compact, rugged 8×11” footprint that is ready for embedded operation.

8-36V DC-Only Operation – Perfect for portable or automotive data loggers or waveform generators.
